What Can a Three-contact Magnetic Connector Do?

• A Three-contact Power-and-signal Arrangement
• Potential Functional Benefits
• Seven Application Categories
• Three-contact Interface Questions

A three-contact magnetic interface can combine a supply, return and one assigned signal path in a compact arrangement. Magnets guide attachment and pogo contacts can provide compliant electrical engagement. The available functions, current capacity and life depend on the contact design and connected circuitry, so this guide describes possibilities rather than a universal three-pin specification.

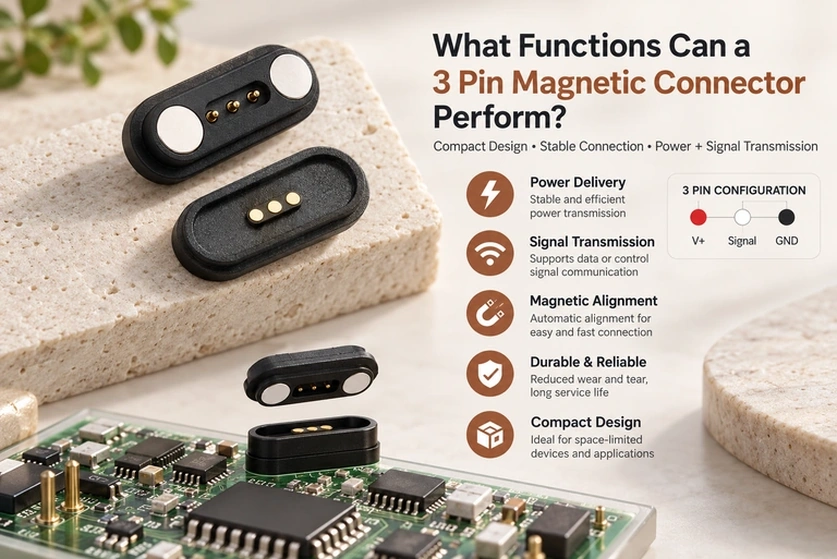

A Three-contact Power-and-signal Arrangement

View image

One possible contact assignment is:

• A positive supply contact, V+.

• A ground or return contact, GND.

• A signal contact for the implemented data or control function.

Magnetic guidance and spring compliance can support repeated engagement within the specified alignment and motion limits. A three-path layout may meet a simple power-and-signal requirement without a larger contact array, but size, development cost and vibration performance depend on the actual assembly.

Potential Functional Benefits

Power Transfer for the Required Load

Supply and return paths can provide DC power when their resistance and rating meet the system requirements.

Performance goals to verify include:

• Voltage within the required limits at the load.

• Temperature rise within the specified limit.

• Consistent charging contact.

• Suitability for the illustrative 1A–5A range where the chosen model is rated and tested for it.

These goals can be relevant to portable electronics and embedded equipment; the specific design must meet the actual load and duty cycle.

An Additional Signal Path

Depending on its circuit assignment, the third contact may support a function such as:

• Charger identification or an implemented handshake.

• Device-status detection.

• An on/off control signal.

• An LED or sensor trigger.

The extra path can provide interaction beyond charging alone. It does not automatically support every communication protocol or high-speed data function.

Guided Magnetic Attachment

A suitable magnetic and locating arrangement can provide:

• Quick snap-on attachment.

• Alignment assistance between the mating halves.

• Reduced insertion-alignment errors.

• Convenient one-handed operation where the product geometry permits it.

Those handling features may be useful in consumer products and industrial handheld equipment, subject to evaluation with the actual users and device.

Repeated Everyday Connection

A face-contact arrangement may support:

• Quick engagement without inserting a plug into a port, while still requiring contact compression.

• Smooth release in the intended direction and force range.

• Frequent daily mating when the life target is validated.

Assess the user interaction in the end product rather than assuming that a connector type establishes satisfaction or product perception.

5. Limiting Mechanical Loads

A designed magnetic release may reduce pull loads transmitted to the device, potentially helping to:

• Limit pull-related port damage.

• Reduce operating stress on supported PCB joints.

• Support the intended interface life.

Suitable designs may target tens of thousands of mating cycles. Verify the selected assembly’s test results and allowed resistance or force change before using that target in a long-life product.

Seven Application Categories

View image

1. Consumer Electronics and Wearables

Consumer and wearable products are one category in which a compact charging-and-control interface may be useful; no largest-market ranking is established here.

• Wearables — smartwatches, fitness bands, sports trackers, smart rings and health-monitoring wristbands. Verify the exact model’s pin count and charging/data functions; no claim that every series uses a three-contact dock is made.

• AR/VR and portable smart glasses — charging-base connections and a supported low-speed sensor signal.

• Portable audio — true-wireless earbud cases, Bluetooth headsets and wireless microphones.

• Small electronic products — stylus pens, portable power banks, electric toothbrushes, heated hair tools, portable humidifiers, smart cups and e-cigarette devices.

• Smart-home equipment — compact air purifiers, portable projectors, robot-vacuum charging contacts and smart locks.

2. Medical and Beauty Equipment

A medical interface must meet the device’s applicable hygiene, electrical, interference and mechanical requirements. Neither three contacts nor a magnetic release establishes medical-grade certification; request the relevant qualification and material evidence for the actual product.

• Portable medical equipment — blood-glucose monitors, ECG equipment, hearing aids, vital-sign monitors and infusion-pump systems, where the contact design is appropriately qualified.

• Beauty devices — facial massagers, hair-removal equipment, cleansing brushes and portable hot/cold devices. Removable connections may help the permitted cleaning routine, while release force and disinfectant compatibility need validation; do not assume that separation prevents every patient-related pull hazard.

3. Energy and Electric-mobility Equipment

The application may require a sealing target within the illustrative IPX4–IP67 range together with vibration qualification. The specific protection state and load determine suitability, rather than the contact count.

• Light electric vehicles — suitable e-bike charging interfaces, bicycle front/rear lighting and scooter-dashboard power docks.

• Vehicle accessories — smart headrests, wireless sensors, auxiliary rearview-mirror power, interior ambient-light controls and portable diagnostic equipment.

• Small energy equipment — portable solar-storage packs and outdoor camping-light power interfaces, with the required current and environmental rating.

4. Industrial and IoT Sensing

Field equipment may need higher-temperature operation, corrosion resistance or a supported heavy-duty structure. Specify and verify these properties for the selected three-contact assembly.

• IoT sensing — hydroponic-monitoring sensors, outdoor temperature/humidity detectors and warehouse tracking tags.

• Inspection tools — handheld thickness gauges, pipeline probes and portable fault-diagnosis instruments.

• Automation equipment — small robot end actuators, modular LED stage lighting and handheld barcode scanners.

• Offshore or field instrumentation — low-power auxiliary oil-rig sensors where a suitable quick connection and the relevant environmental qualification are provided; reduced downtime requires actual service evidence.

5. Drones and Portable Inspection Systems

A compact three-contact design may fit a lightweight drone interface if its loads, shock requirements and circuit allocation are satisfied.

• Small consumer or inspection drones — a compatible battery-change interface or supported data dock.

• Industrial patrol drones — portable ground-charging bases for a suitable smaller system.

6. Mobile and Handheld Terminals

• Handheld terminals — logistics PDAs, body-worn recording devices and walkie-talkies.

• Mobile accessories — portable vehicle-mounted monitors and outdoor communication equipment.

7. Prototypes and OEM Development

A standard three-contact pogo interface can be useful for prototype verification, custom electronic modules and maker projects when its mounting and electrical functions fit the design. Compare integration and tooling cost for the actual development rather than assuming a universal low-cost result.

Three-contact Interface Questions

1. Which Functions Can Three Contacts Provide?

An example arrangement provides supply, return and one implemented signal path, with magnetic guidance for attachment. The actual pinout determines the functions.

2. Can It Carry Charging Power and Data?

It can carry charging power plus a compatible signal function when the circuit is designed for that allocation. The example does not establish support for arbitrary high-speed data or protocols requiring additional separate paths.

3. Can It Be Used in Industrial Equipment?

A suitable design may serve industrial handhelds or compact equipment. Verify the required current, mounting, vibration, exposure and contact-life performance for the application.

4. What Determines Reliability?

Contact structure, spring travel, coatings, alignment, retention and protection all matter. Stability and shock performance need testing in the intended assembly and operating conditions, especially for harsh use.

5. What Mating Life Is Possible?

The illustrative range here is 10,000–100,000+ cycles for suitable designs. Confirm the material, coating, working conditions and permitted performance change of the exact life test.

6. Which Parameters Can Be Customized?

Possible changes include verified current capacity, magnetic holding and release force, contact layout and the sealing target. Agree the detailed design and validation requirements with the manufacturer.

Conclusion

Magtor can discuss a three-contact interface combining power paths, an implemented control or signal path and magnetic guidance. This architecture may suit wearables, smart devices or industrial equipment where the allocation fits the required functions. Define current, contact assignment, mounting and protection together, then validate the selected configuration. Customization can improve fit without making three contacts a universal solution for every protocol or environment.
