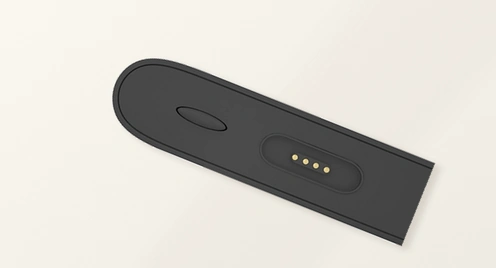

Four-contact Magnetic Interfaces for Shared Power Banks
Explore a compact four-contact interface for shared power-bank systems. Magnetic guidance can assist repeated docking, while the contact allocation can provide charging and supported communication functions. Current capacity, data performance and the physical envelope must be assessed for the complete assembly and charging station.
- Home
- Magnetic connectors
Shared power-bank applications
Design Benefits to Evaluate
A four-contact magnetic arrangement can address restricted space and repeated attachment in consumer products. Match the electrical functions, contact travel and retention to the device rather than assuming one architecture maximizes every performance measure.
Convenient Magnetic Attachment
Magnetic guidance can help the power bank seat in its dock within the designed capture range. Verify locating geometry and contact engagement to establish reliable electrical connection.
Repeated-use Design
A mating-life target above 10,000 cycles can be evaluated for frequent public use. Confirm the selected assembly’s test conditions and performance after cycling; the target does not establish unlimited life or an already verified result for every model.
Charging-path Stability
Define the magnetic retention and release force together with the power and signal paths. Continuous supply and any higher-speed data function require electrical, thermal and communication verification; controlled release must be evaluated in the device.
Engineering and Manufacturing Support
Discuss custom development and manufacturing requirements with our engineering team, including the tests needed for your product and production volume.
17
Years of experience
Support spans prototype development, precision tooling and production planning for the required scale.
Custom Contact Arrangements

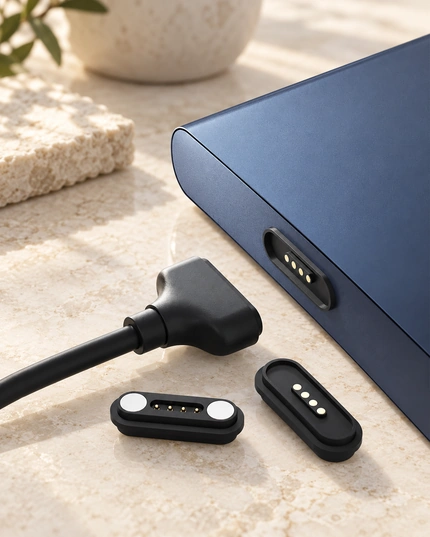

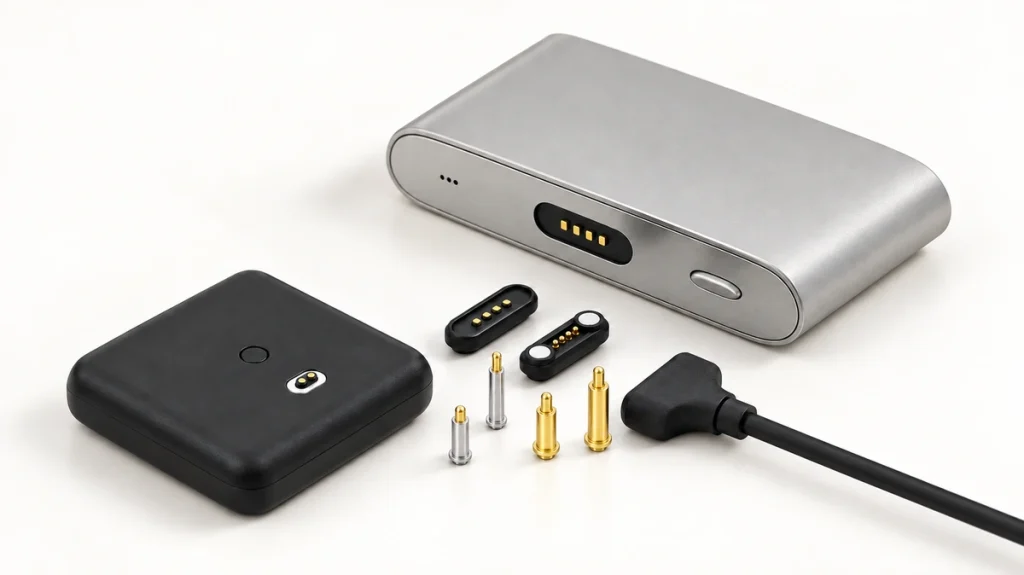

A four-contact layout can be tailored to the device’s electrical assignment, mechanical envelope and docking geometry.
Power and Supported Signals
Allocate charging and data paths together, then verify the required current, return path and signal performance at the intended operating conditions.
Reliability Requirements
Select contact finishes and mechanical features for the specified mating life. Water and dust protection depend on a qualified sealing design, not plating alone.
Shared Power-bank Interface Requirements
Connector selection affects the service life and maintainability of a shared power-bank station.
Specify the number of daily returns and the required mating life. Evaluate current stability and resistance for the charging load, and choose contact finishes and materials for contamination and corrosion exposure in public locations. Confirm performance after the applicable wear and environmental tests.
Retention should hold the device securely while allowing the intended removal force. Depending on the station, requirements may also include a custom pin assignment, qualified water protection and features to resist misuse or vandalism. Define each condition for the actual product.
A maintainable interface with verified durability and electrical performance may reduce servicing and extend useful life. Quantify any operational-cost benefit from the system’s actual failure and maintenance data rather than assuming a fixed saving.
Engineering Support
Share your prototype and custom-interface requirements with our team.
Features to Assess
- Required mating-cycle durability.
- Stable current transfer under the defined load.
- Low and stable contact resistance.
- A corrosion-resistant contact finish appropriate to the exposure.
- Magnetic retention matched to holding and removal requirements.
- An optional, qualified water-protection design.
- A custom contact allocation where needed.
- Performance verified for public-use conditions.
Application considerations
Why Consider Four Magnetic Contacts for Shared Power Banks?
Rental power banks can be returned and charged repeatedly, with a design life involving tens of thousands of connections. Compare connector wear, alignment and servicing requirements across the candidate interfaces under that usage profile; insertion-style connectors are not inherently unsuitable for every rental system.
Docking and Durability
Magnetic guidance can help the bank locate in the station within the capture range, potentially reducing insertion effort and wear from forced mating. Dock geometry and contact pressure still control seating, and charging efficiency depends on the complete electrical path.
Four contacts may support charging together with identification or communication when the station circuitry and pin assignment are designed for those functions. Monitoring and management can then be evaluated at system level, including their effect on maintenance and uptime.
Common Questions
Review the docking, durability and customization considerations for a shared power-bank interface. Performance and servicing benefits require model- and system-specific validation.
Why Consider Four Magnetic Contacts for Shared Power Banks?
What Mating Life Should a Power-bank Interface Be Designed For?
Can a Magnetic Interface Lower Servicing Costs?
Can the Shared Power-bank Connector Be Customized?
Start a Shared Power-bank Project
Share the four-contact assignment, docking envelope, charging conditions and expected usage with our engineering team. These details support a technical review, prototype plan and manufacturing assessment.
