Three-contact Magnetic Interface for a Modular Digital Piano
A three-contact magnetic assembly can link adjacent keyboard sections without an external interconnection cable. In this POP PIANO application, the interface is fitted into each module’s side so that additional sections can be joined as the required key count increases. The device’s electrical assignment must define the functions of the three paths.
Three-contact magnetic connectorIntegrated Module Connection
No External Interconnection Cable
17 Years of Manufacturing Experience
Custom Design and Prototypes
- Home
- Applications
- Three-contact Magnetic Interface for a Modular Digital Piano
A Connection for an Expandable Keyboard
The POP PIANO example uses an expandable keyboard architecture. A beginner can start with a compact section and add modules as more keys are needed, rather than replacing the complete instrument. The magnetic contact assembly is one component of the electrical and mechanical system that enables this approach.
Module-connection Design Requirements
The connection must balance mechanical positioning, convenient assembly and the available space. Evaluate candidate interfaces against the piano’s industrial-design requirements rather than assuming every conventional connection would fail.
Accurate Positioning
The adjoining sections need correct alignment so that the key surfaces sit flush and the keyboard can operate as designed.
Cable-free Interconnection
An external cable between sections would affect handling and the exterior. Integrating the interface into the sides addresses that design requirement.
Repeated Assembly and Storage
The mating interface needs a defined life for users who assemble, separate and store the sections repeatedly.
Connecting the Keyboard Sections
As the sections approach one another, magnets assist positioning and the locating geometry establishes seating. The three conductive contacts then make the electrical paths assigned by the piano design. Verify mechanical fit and electrical engagement together.
Position the Sections
Bring the side of the additional section toward the existing keyboard arrangement.
Magnetic Guidance
The magnetic arrangement guides approach within its capture range. Housing and locating features must establish the required alignment; attraction alone does not guarantee a perfect fit.
Engage the Contacts
The three gold-colored contacts meet to establish the assigned circuits between sections without an external interconnection plug. The appearance alone does not confirm plating composition or an electrical rating.
Integration into the Side Housing
The custom black connector housing is recessed into the module’s side, placing the interface within the piano’s mechanical envelope.
Custom magnetic interfaceThe contact area forms part of the enclosure architecture. When the sections are separated, a conventional plug does not protrude from the side, helping retain the intended exterior profile.
Reasons to Consider Magnetic Attachment
Magnetic Guidance
Magnetic guidance can assist the approach of adjacent sections while mechanical locating features define their seated position.
Quick Section Attachment
The arrangement avoids inserting a separate conventional plug or routing an external interconnection cable between adjacent sections.
Repeatable Assembly
Sections can be attached, removed and stored. Verify that the interface meets the required repeated-use life rather than assuming reliability for an unspecified period.
Compact Side Interface
Placing the connector inside the enclosure avoids allocating space for a separate external cable connection.
1 / 2
Expanding the Keyboard as Needs Change
One compact module can be retained while more sections are added to increase the key count. The magnetic connector supports the physical interface, while the piano’s circuitry and controls must support the expanded arrangement.
The POP PIANO Modular Application
Application photographs illustrate the modular instrument and its side-mounted interface in demonstrations and use. They describe this application, not proof that every user can configure every variant without instructions. Third-party identity in the media remains subject to the publication review.
Physical keyboard demonstration
Users demonstrating modular expansion

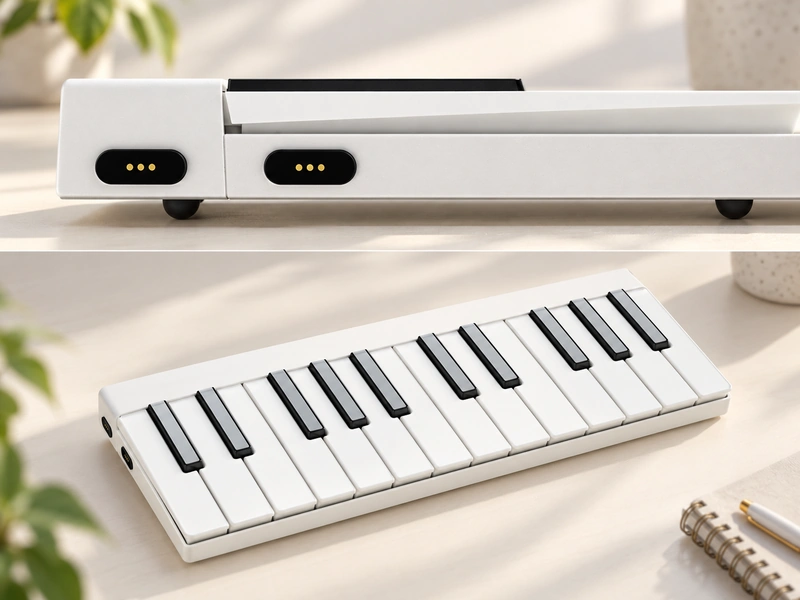

Side-housing connector integration
