Magnetic Connectors Built Around Your Application
Magtor develops and manufactures magnetic connectors with automatic attachment and stable docking. The range includes high-current options supporting up to 30A and waterproof designs with IP67 protection. Confirm the capabilities of the configuration selected for your device.
17+
Years of Manufacturing
Engineering and Manufacturing Capability
Our 12,000-square-meter facility brings together 185 people, including a 12-member R&D team. Magtor has experience in magnetic connectors and cables, high-current interfaces and waterproof connection solutions. The stated founding year for this product series is 2009; that year remains to be confirmed.
Manufacturing
Automated production and advanced inspection equipment support consistent manufacturing quality.
Solution Development
Our technical engineering team aims to provide a connector solution within 48 hours.
Product Categories

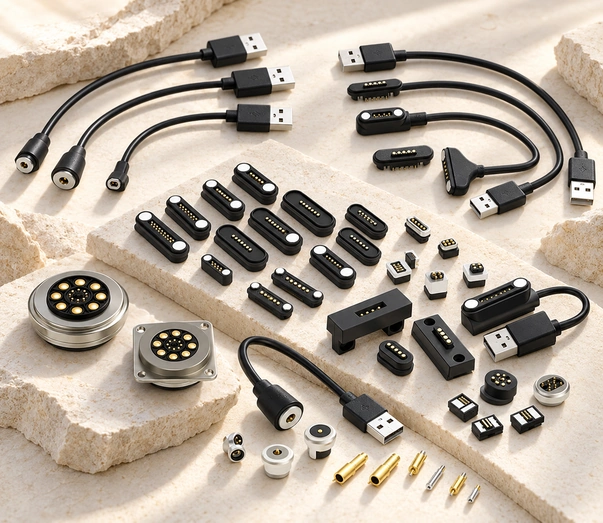

Explore the Connector Range
Choose from compact interfaces, high-current configurations and waterproof designs. Magnetic attachment and alignment safeguards are offered across different styles, with custom solutions available for your application.

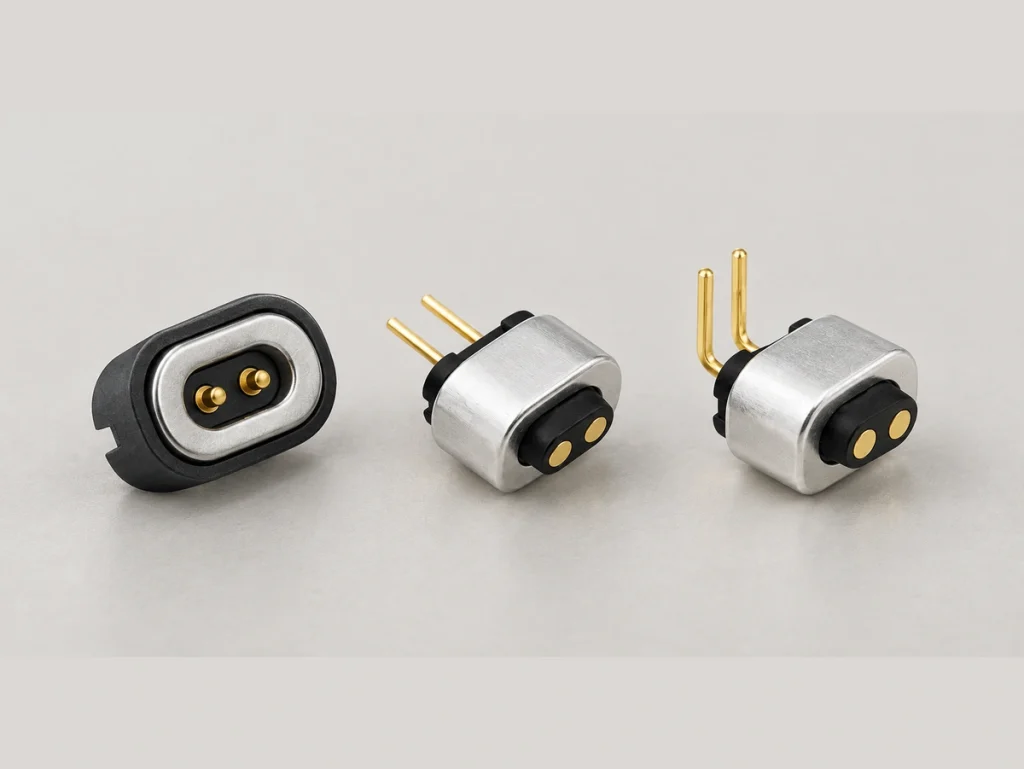

2 Pin Magnetic Connector
A compact connection option for small devices, including smartwatches and AI glasses.
2 Pin Magnetic Connector

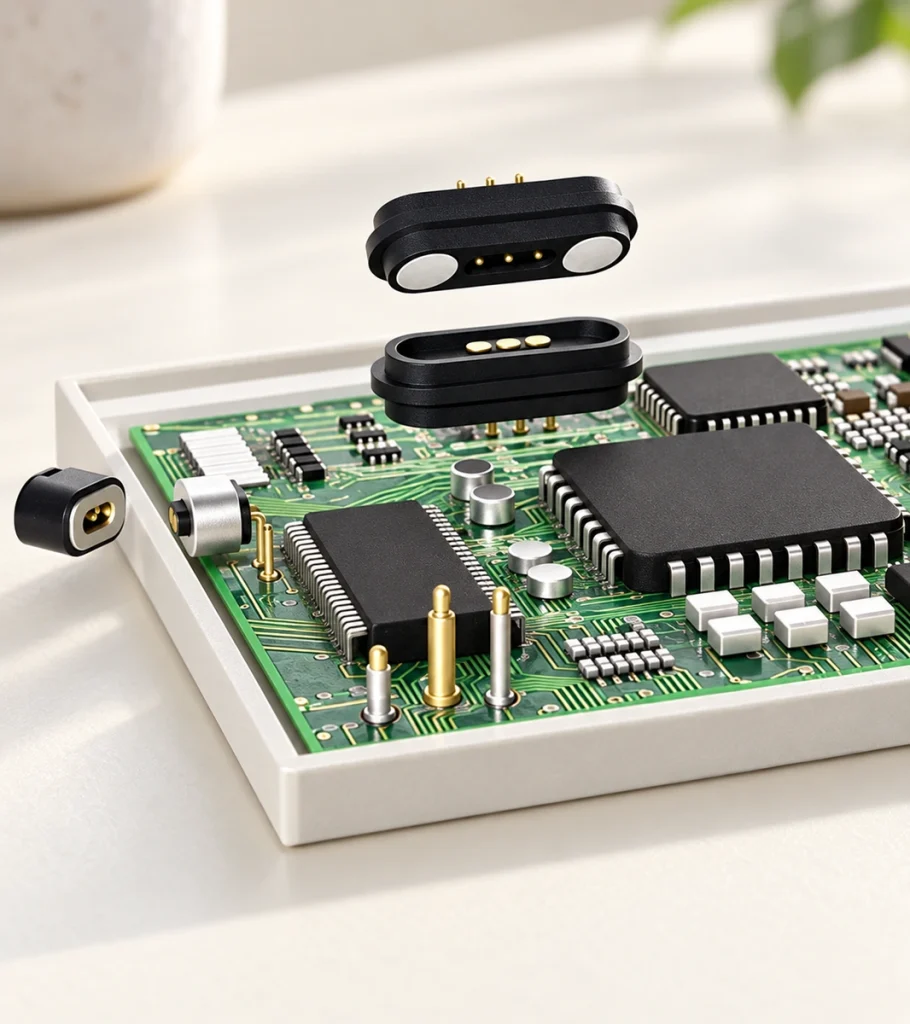

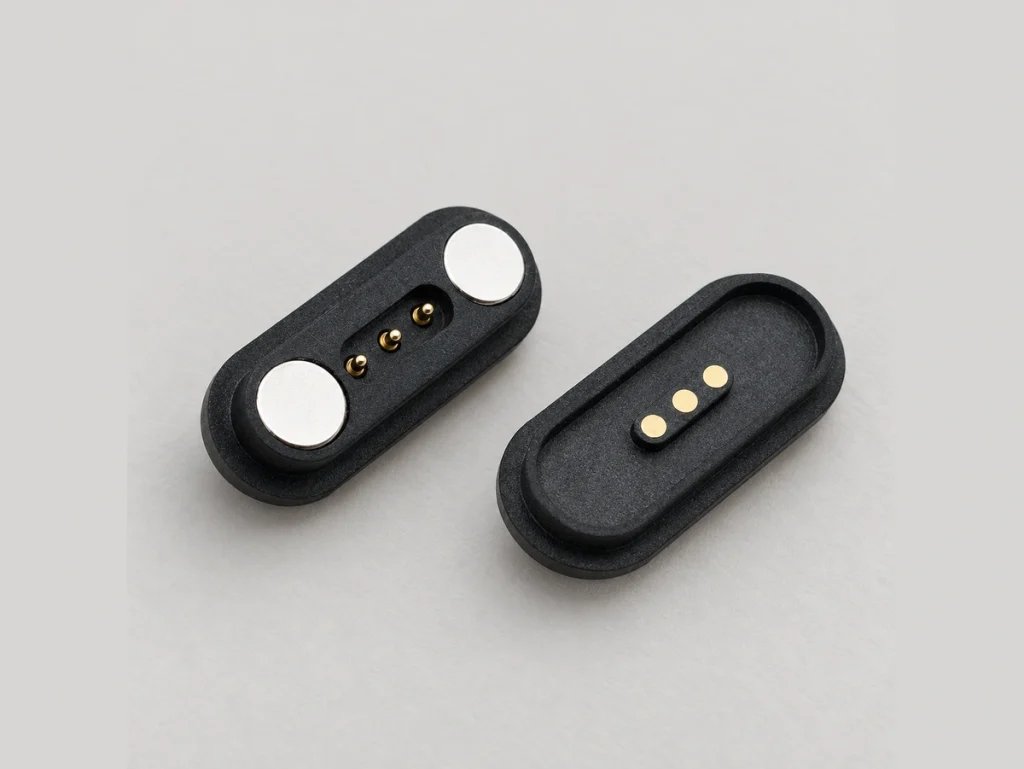

3 Pin Magnetic Connector
A standard series for varied applications, with custom design support available.
3 Pin Magnetic Connector

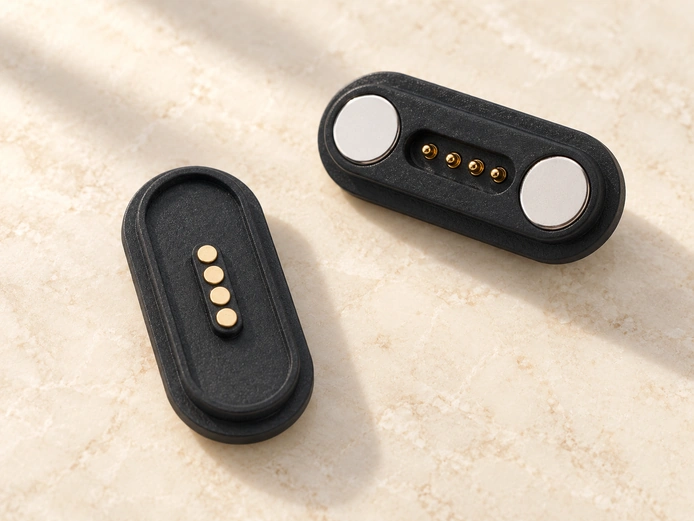

4 Pin Magnetic Connector
Standard configurations for consumer electronics, with waterproofing that can be customized.
4 Pin Magnetic Connector
High Current Magnetic Connector
A 30A high-current option for stable power delivery in applications such as drones and robotics.
High Current Magnetic ConnectorWaterproof Designs Matched to Your Application

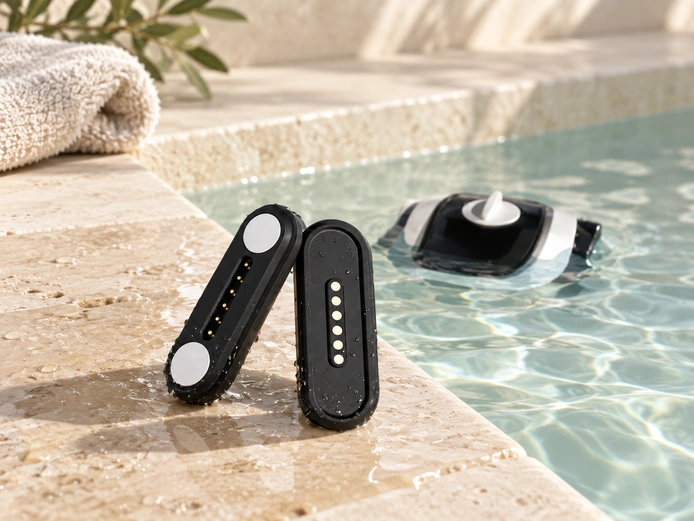

Custom magnetic connector designs can address moisture, dust and corrosion with protection levels from IP65 to IP67. They serve marine equipment, medical devices and outdoor industrial applications. Designs with suitable protection can maintain performance after brief immersion; verify the applicable version and immersion conditions for your project.
Integrated O-Rings and Insert Molding
Corrosion-Resistant Plating
Application-Specific Waterproofing
High-Current Contacts and Magnetic Retention
High-conductivity copper alloy contacts support stable current transfer at up to 30A, while N52 neodymium magnets provide retention. The housing structure and magnetic arrangement guide automatic mating and help prevent incorrect alignment.
30A
Max Current Rating
N52
Neodymium Grade
10k+
Mating Cycles
2.0kgf
Magnetic Holding Force
17 Years of Connector Manufacturing
From design to mass production,
Dedicated Connector Factory
A workforce of 185 includes 12 R&D staff at our 12000-square-meter factory. This professional team supports customers with technical and manufacturing services.
Production Equipment and Technical Expertise
Our technical team works with advanced production equipment to maintain consistent connector output and performance.

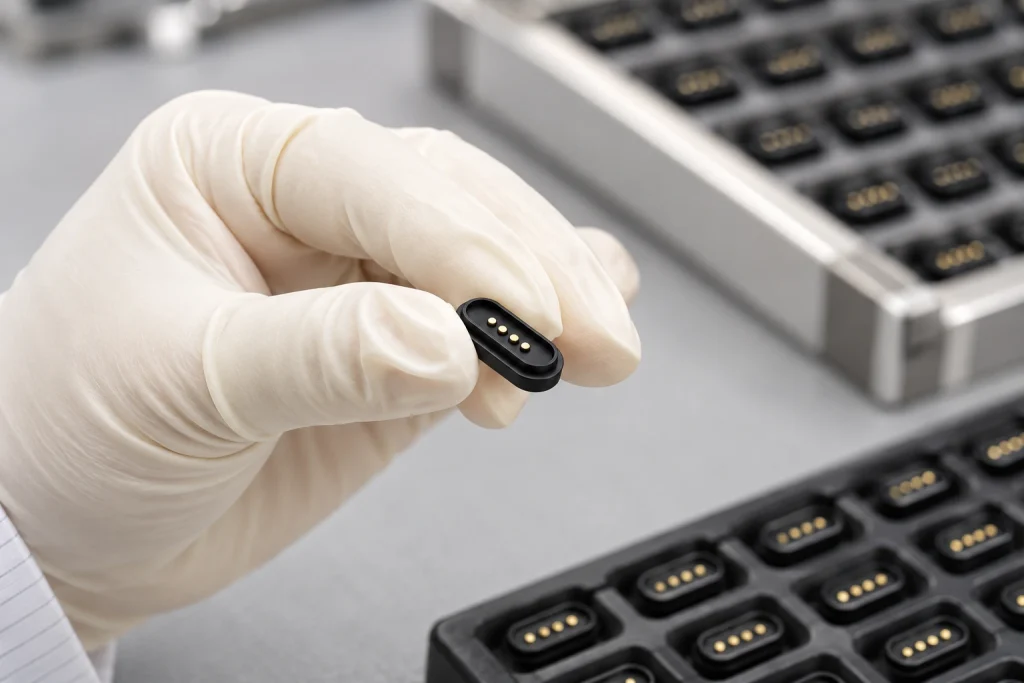

Inspection and Testing
Connector checks include lifespan, film thickness, elastic resistance, RoHS compliance and CCD inspection, using advanced test equipment.
Engineering Support Customers Can Rely On
More than a dozen technical engineers review connector proposals carefully against the requirements of each application.
Automated Production
Our 17 years of manufacturing experience cover solution development through mass production, with technical expertise and prompt responses along the way.
Tell Us About Your Next Connection
Work with Magtor for dependable manufacturing and practical engineering support. Share the requirements for your custom magnetic connector.
Long-Term Customer Relationships
Our precision manufacturing work serves major customers worldwide.
1 / 10
Management Systems and Certification
Quality and compliance management information for our manufacturing facility. New company certificate documents are pending.
Connector Design and Supply FAQ
Can you develop a custom magnetic connector?
Yes. Our 17 years of manufacturing experience include solution development, prototyping and mold making. Pin count, magnetic force, housing shape and target IP protection can be adapted to the project. Verify any protection rating for the completed configuration.
How long do standard and custom orders take?
Standard models typically have lead times of 7-14 days. If a custom design needs new molds, allow about 2-3 weeks for prototyping. Mass production usually takes 3-4 weeks after that, depending on the order volume.
Can I evaluate samples before ordering in volume?
Yes. Magtor supplies samples for testing and validation, with stock items available to ship within 48 hours after payment. Custom prototypes can also be made so you can evaluate performance, compatibility and reliability before mass production.
Why work with Magtor on a magnetic connector project?
More than a decade of magnetic connector manufacturing has led to dedicated 30A high-current products and IP67 waterproof designs. Our connector applications include consumer electronics, wearables, smart home systems, medical equipment, industrial automation and robotics, drones and high-end electronics. We have supplied connection solutions to major international companies for many years.
Understanding the Magnetic Interface
Pogo pins, plastic parts and magnets form the main elements of a magnetic connector. Its structure uses magnetic attraction and repulsion to guide automatic attachment, while physical electrical contacts carry current, data or signals.
What influences magnetic holding force?
Device dimensions and the spring force associated with the female connector housing influence holding force. The stated design guidance compares magnetic force with the spring force of one pin: stronger retention calls for a larger magnet, while lower retention is paired with a weaker pin spring. A complete force balance must be checked for the actual multi-contact assembly and operating conditions so that insufficient retention does not leave the connection loose.
How does plating affect connector performance?
Plating the pogo pins influences connector cost, corrosion resistance and service life. Gold is the common coating choice. For some specialized applications, a composite of several plating materials may be selected to improve performance.
Eight Stages of Connector Production
Magtor controls quality throughout the connector production process, from the initial concept to the finished part. Personnel checks and instrument inspection work together at each stage.
Incoming Inspection
Pogo Pin Plating
Coating Inspection

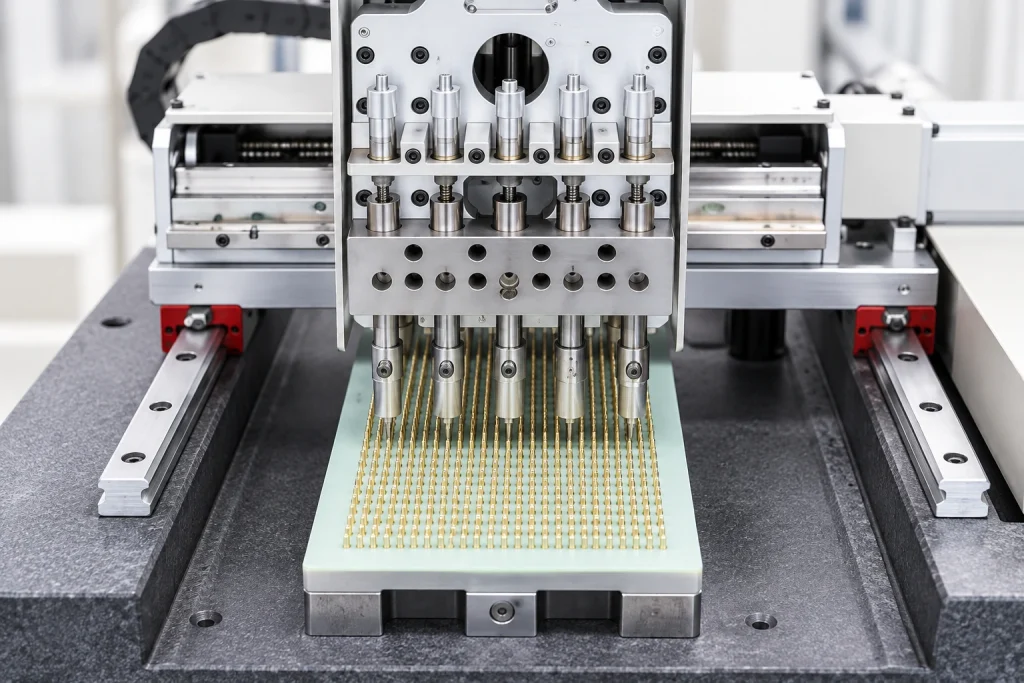

Automated Riveting

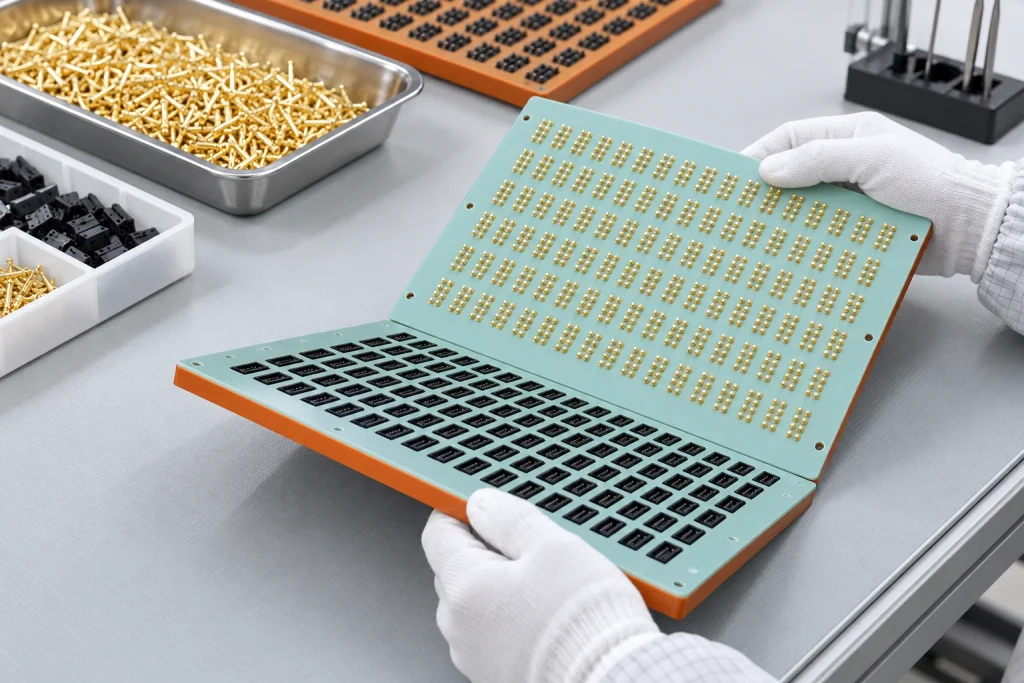

Final Assembly
Quality Inspection

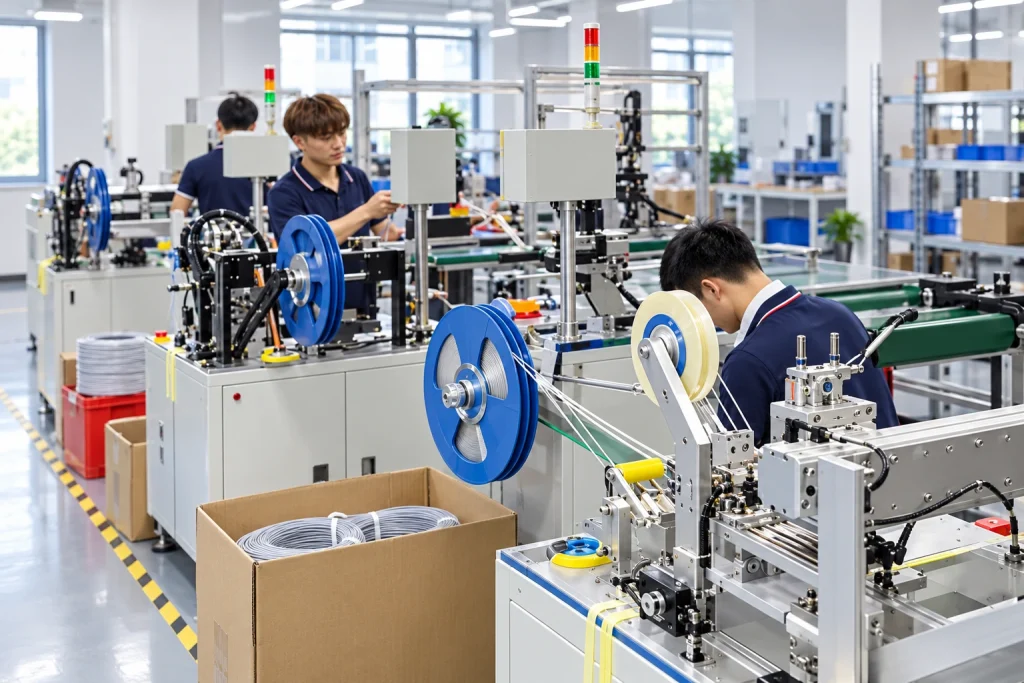

Product Packaging

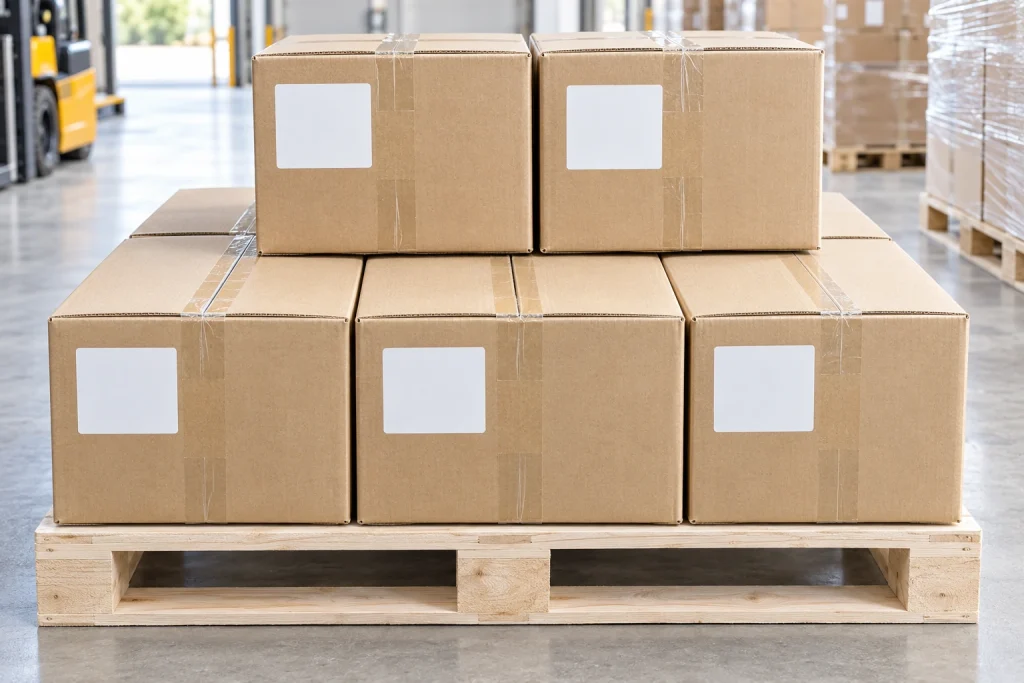

Shipping
Practical Benefits of Magnetic Connections
Magnetic force and the connector structure work together to create these benefits. Careful interface design makes magnetic connectors suitable for electronic device integration.

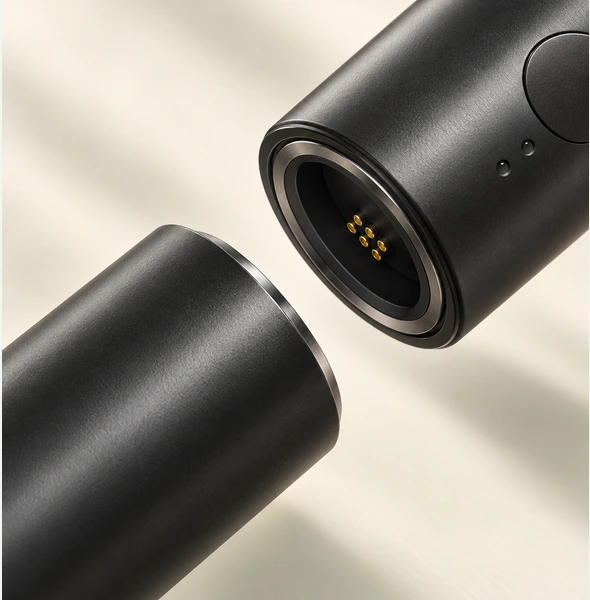

Automatic Magnetic Alignment
Magnetic attraction and repulsion guide the mating angle, bringing the connector parts into precise alignment.
Mating Error Prevention
Housing geometry and magnetic forces guide the parts toward their intended alignment, making incorrect mating much less likely.
Service Life
The pogo pin structure can accommodate tens of thousands of mating and unmating cycles. Certain specialized models can reach hundreds of thousands; the applicable cycle life depends on the model.
Release Under External Force
When an external pull reaches the connection, the magnetic interface can separate rather than transmit the full strain through the cable or port. This release mechanism helps reduce device falls and damage to the connector.
Flexible customization
Custom development can range from 1-pin interfaces to multi-pin connections, and from miniature formats to high-current designs. The equipment structure and electrical requirements determine the appropriate solution.
