Application overview

Magnetic Spring-contact Interfaces for AI Smart Glasses

AI smart glasses combine wearable packaging with power and communication requirements. Their interfaces need to fit a lightweight, comfortable frame and provide the functions assigned by the circuitry. Magnetic contact designs may address attachment and space constraints, but battery life, charging rate and signal speed depend on the complete device.

Smart glasses and magnetic contact samples

Design Considerations for Compact Wearables

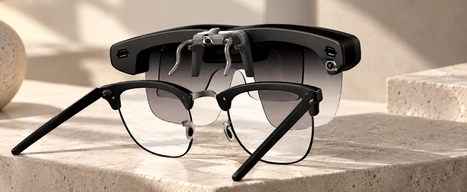

Smart glasses positioned behind a pair of optical glasses.

Compact Two-contact Arrangement

A two-contact interface can be assessed for the glasses’ temple or frame where space and weight are restricted. Verify mechanical strength, contact spacing and magnetic retention within the available envelope.

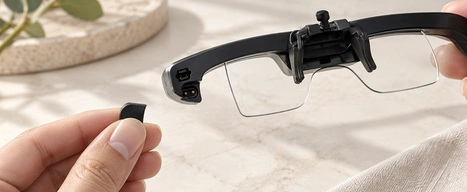

Smart glasses with a two-contact temple interface and detached mating component.

Guided Mating and Repeated Use

Magnetic guidance can assist attachment without precise visual positioning inside its capture range. The contact surfaces still experience pressure and possible rubbing, so mating-life and wear requirements must be verified rather than described as friction-free.

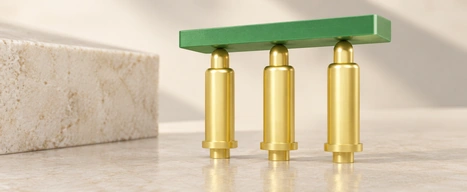

Three gold spring pins touching a green circuit board.

Contact Stability and Signal Requirements

Select the contact finish and spring design to maintain suitable resistance under the specified motion and vibration. Charging and any supported data function require the corresponding circuitry and signal paths; a two-contact power arrangement does not itself enable high-speed synchronization or establish AI-chip performance.

Custom Interfaces for Smart Wearables

With 17 years of manufacturing experience, Magtor can assess a two-contact magnetic arrangement from concept through production planning. Define wearability, sweat exposure and repeated attachment, and specify any corrosion or IP68 target. The sealing state and immersion conditions need qualification; an IP rating alone does not establish sweat-corrosion resistance.

Two-contact magnetic connector

Prototype Development and Precision Tooling

Reliability Tests Matched to the Exposure Conditions

Production and Quality Controls for the Applicable Project Requirements

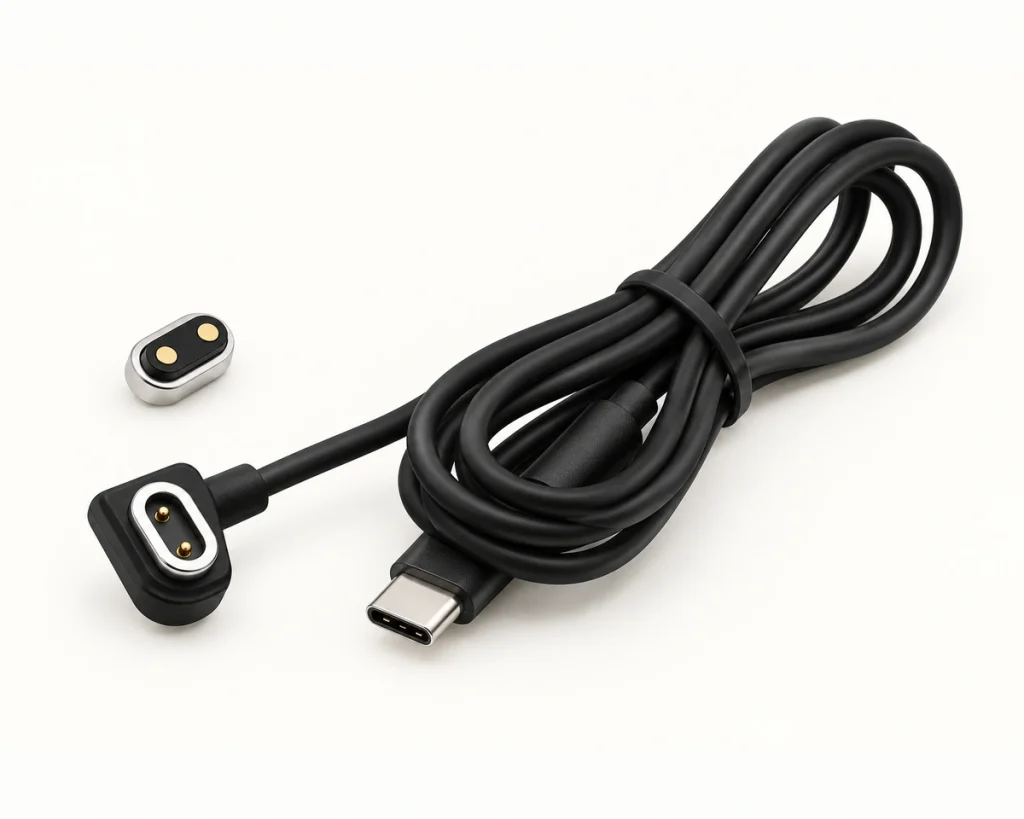

Two-contact USB-C magnetic cable bundle with its original separate two-pad silver receptacle.

Common Questions

Review the packaging, attachment and durability requirements for a magnetic spring-contact interface in smart glasses.

Why Consider Magnetic Spring Contacts in AI Smart Glasses?
A magnetic interface can provide a compact power connection and, where deliberately implemented, supported data functions. Guidance may reduce the insertion effort on a small frame, while mechanical locating features and contact design must protect the product against wear and loads. Verify the actual contact allocation instead of assuming simultaneous data and power from two pins.
How Can Magnetic Attachment Affect Usability?
Bringing a cable within the designed capture range can help guide it to the interface without viewing a small port directly. The release force and response to an accidental pull require device-level testing; detachment is not automatically damage-free or safe. Charging or data convenience depends on the implemented functions.
What Contact Pitch Can Fit a Smart-glasses Frame?
A pitch of 1.0 is an original compact-layout example, but its unit and applicable drawing must be confirmed before specification. Check the full interface dimensions, magnetic arrangement and electrical limits for the narrow frame; a small pitch does not guarantee unchanged retention or conductivity.
What Mating-life Range Can Be Considered?
Examples from 10,000 to over 50,000 mating cycles can be evaluated for a suitable design and test method. Confirm resistance, retention and mechanical condition after cycling; the range is not a guarantee that every connector outlasts the glasses.
Magtor temporary brand wordmark

Start a Custom Wearable Interface Project

For a new frame or an update to an existing design, share the power requirement, interface dimensions, exposure conditions and development schedule. Our engineering team can assess the configuration and provide a project-specific quotation.
