Our 17 years of manufacturing experience support precision magnetic interfaces for demanding industrial environments. We develop reliable power connections around the operating needs of your equipment.

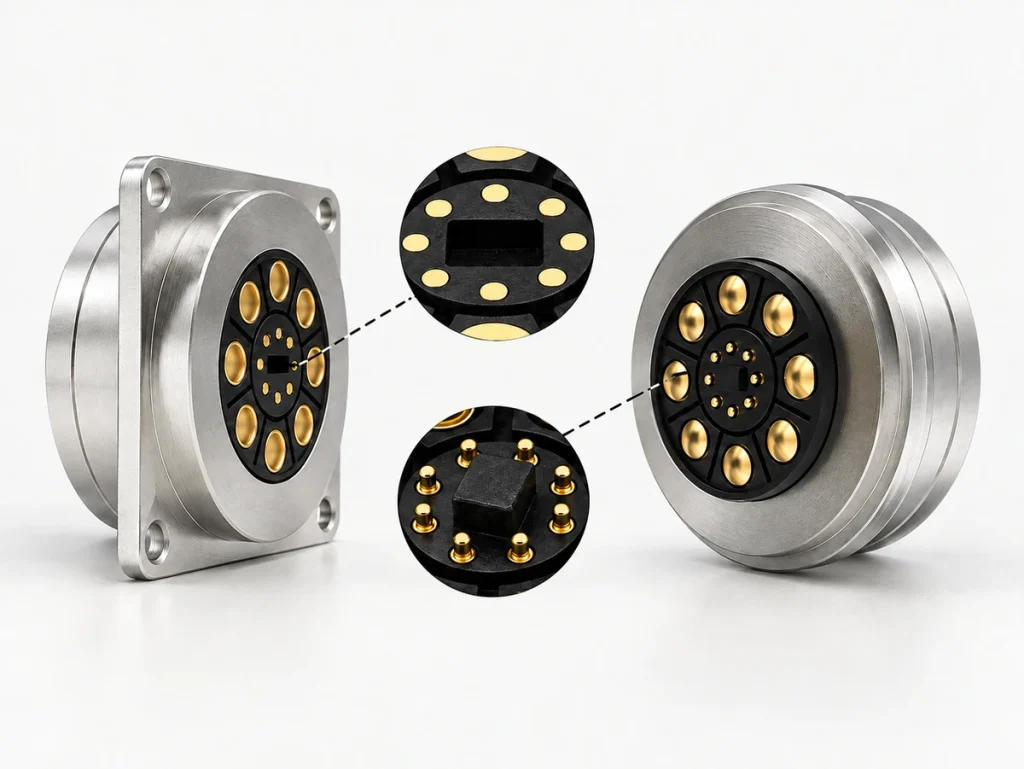

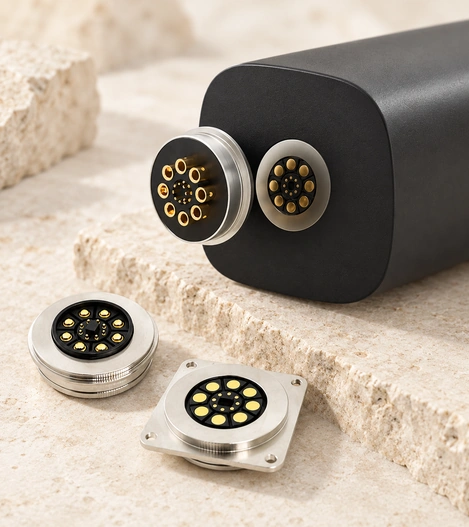

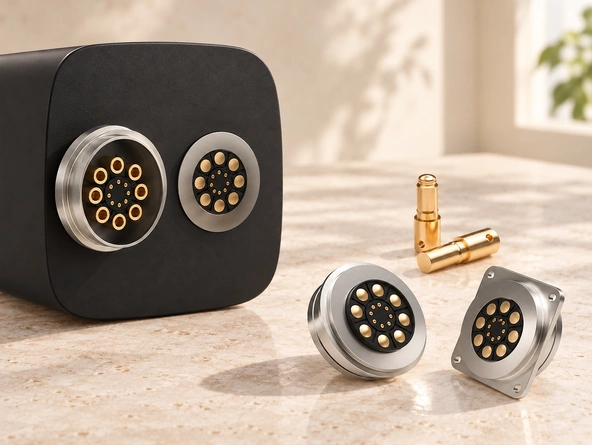

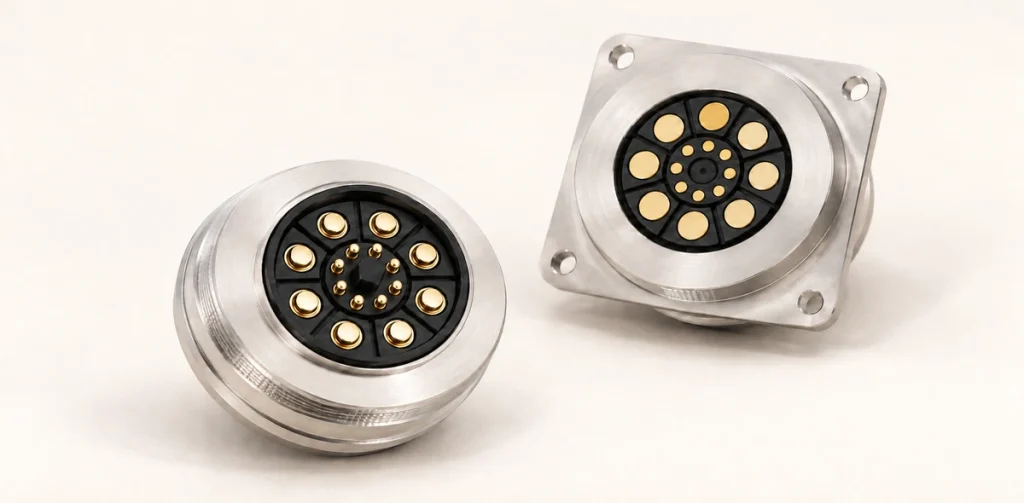

30A High Current Magnetic Connector
A rapid-mating interface designed for secure power connections in harsh operating environments.

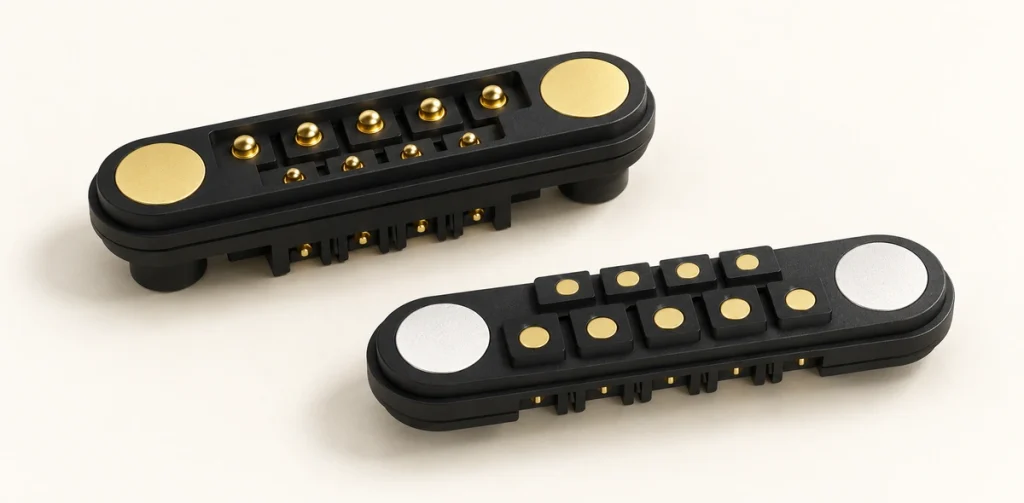

20A High Current Magnetic Connector
A compact structure combines high-current capability with magnetic retention where installation space is limited.
Dedicated Designs for Continuous Current up to 30A
Purpose-designed magnetic connectors can support continuous current up to 30A. Precision-machined contacts and high-grade neodymium magnets are used to achieve low contact resistance and stable heavy-load operation. Confirm the rating and operating conditions for the selected configuration.
- Ultra-Low Contact Resistance
- High-Grade Neodymium Magnets
- Continuous 30A Load Stability
Customers Across Manufacturing and Engineering
1 / 10
Quality & Certifications
17 Years of Manufacturing Excellence
In-house facilities support custom connector development through precision design, prototypes and mold making, with quality checks throughout the project.
Automated Production
Professional equipment and automated production combine with more than a decade of manufacturing experience to support consistent supply.

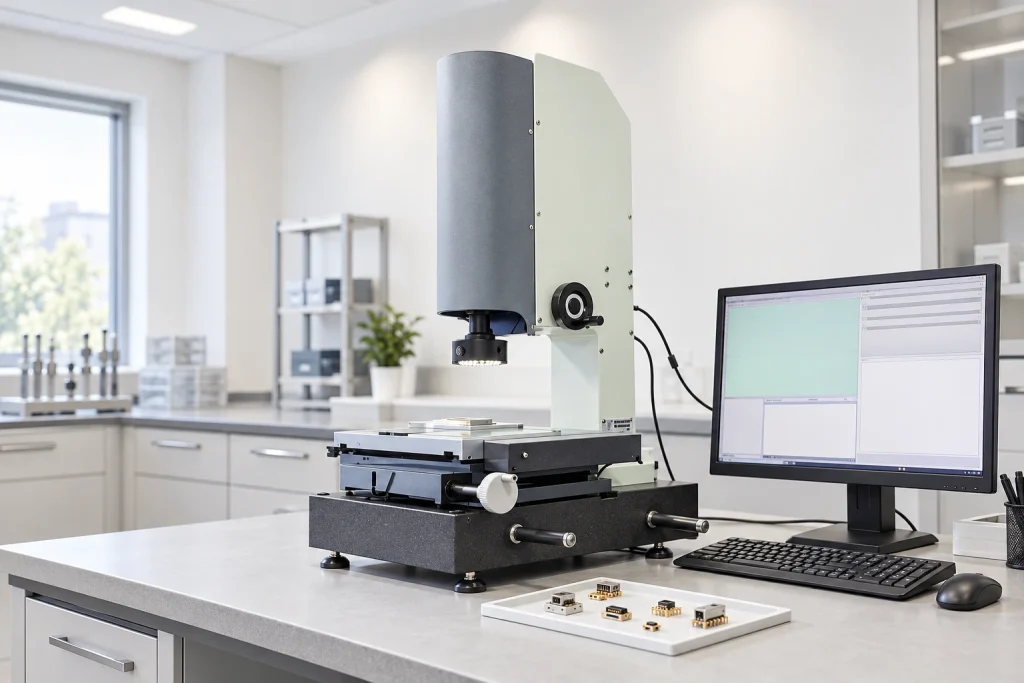

Quality Assurance
Testing and validation assess continuous 30A performance and the durability of the magnetic assembly for the specified configuration.
High Current Magnetic Connector Manufacturer
Specialist production of magnetic connectors
Frequently Asked Questions
Can High Current Magnetic Connector Be Customized?
How Many Mating Cycles Can High Current Magnetic Connector Support?
Can the magnetic force and current be customized?
What Is the MOQ for High Current Magnetic Connector?
What Is a High Current Magnetic Connector?
A high-current magnetic interface uses magnetic alignment, spring-loaded contacts or conductive terminals, and a strong housing. A typical arrangement includes large contacts for high current and smaller contacts for additional functions. The description of those smaller-contact functions is incomplete and requires confirmation.
Compared with standard magnetic interfaces, dedicated high-current designs generally use:
Larger conductive contact areas
Lower contact resistance
Stronger magnetic force
Improved heat dissipation
Higher current carrying capacity
Higher current requirements commonly call for larger contacts and greater spring force. Stronger magnetic retention is therefore often needed to maintain the intended connection.
Typical applications include drones, robotics and industrial machinery.
How Does a High-Current Magnetic Interface Work?
Magnetic guidance and conductive contacts work together to create a stable high-power electrical connection.
As the male and female parts approach, their magnets align and retain the interface. Spring-loaded pogo pins or conductive terminals then meet under pressure to carry the current.
Connector Mating Process:
Magnetic attraction guides the mating ends into alignment.
The conductive contact surfaces meet.
Spring-loaded structures maintain contact pressure.
The contacts carry the specified continuous current; safe operation requires validation.
Core Components for High Current
High-current configurations commonly incorporate the following features:
Gold-plated contacts
Copper alloy materials
Low resistance conductive structures
High temperature resistant materials
Reinforced magnetic force designs
These design choices help limit power loss, maintain conductivity and support reliable operation over time.
Request a Custom Solution
Discuss the current, mechanical and environmental requirements with our technical team. Development support covers the design stage through manufacturing.
