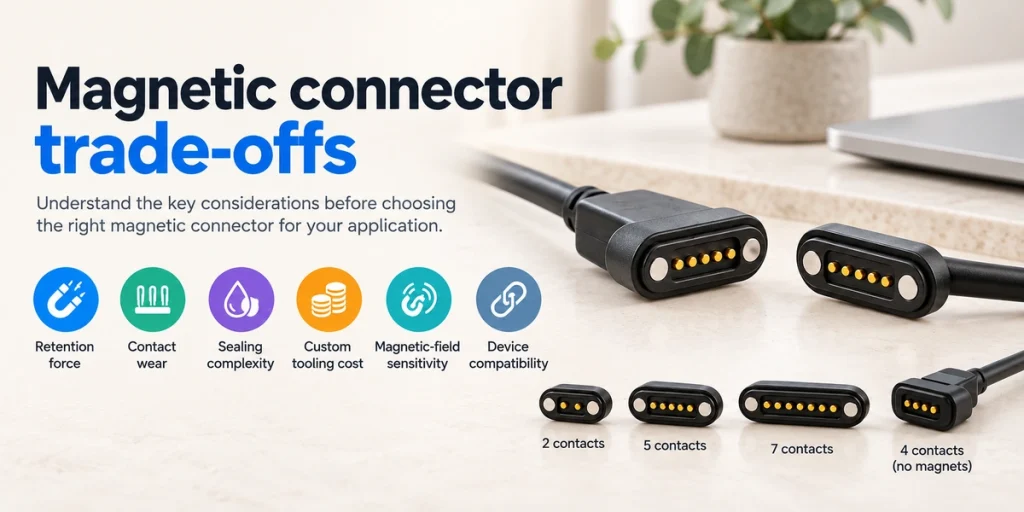

Magnetic Connector Limitations: Six OEM Design Trade-Offs

• Retention Under Real Loads
• Contamination and Contact Wear
• Sealing Complexity
• Customization Cost and Coordination
• Magnetic Fields and Interchangeability
• Matching the Application
• Comparison with Conventional Connectors
• Assessing System Reliability
• Engineering Questions

Magnetic guidance and detachable mating can simplify handling. Selection still needs to account for retention, contact wear, sealing, customization cost, magnetic-field effects and compatibility. Assess these six limitations against the actual device requirements.

Retention Under Real Loads

Many magnetic interfaces retain the connection mainly through magnetic attraction. Where no additional latch is provided, retention behaves differently from a mechanically locked connector.

Seven factors influence the holding force:

• Magnet dimensions and grade

• Magnet quantity

• Gap between mating surfaces

• Housing geometry

• Magnetic orientation

• Mating alignment

• External pull on the assembly

Cable tension, vibration, shock or an accidental pull can separate an interface whose magnetic retention is insufficient for those loads.

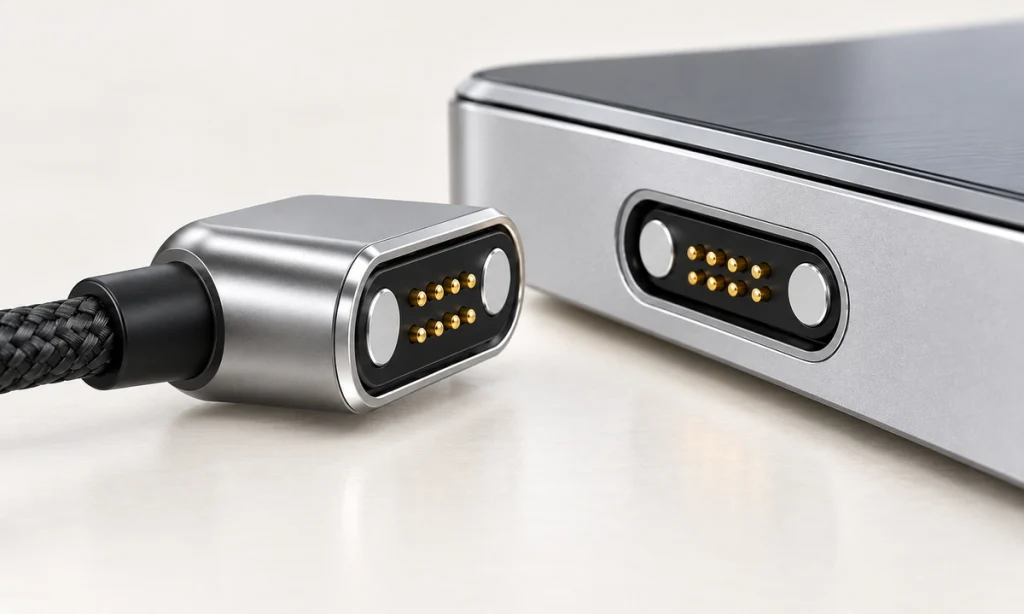

View image

If the application requires a mechanical lock throughout severe continuous vibration or substantial tensile loading, evaluate a locking or otherwise restrained interface against that requirement.

In a different use case, deliberate breakaway can reduce cable strain during an accidental pull. The benefit depends on release force and the complete product geometry; it is not a guarantee against damage or falls.

Designing for the Required Retention

Possible design changes include selecting suitable magnetic force, increasing magnet size or quantity, and adding locating or keying features. Coordinate the magnetic circuit with the mechanical structure before choosing an approach.

Evaluate retention together with these six use conditions:

• Cable weight

• Applied pulling force

• Vibration level

• Mating orientation

• Required release force

• Operating environment

Industrial and robotic designs need evaluation under their actual mechanical conditions. Nominal magnetic force by itself does not establish suitability for the assembled device.

Contamination and Contact Wear

Many magnetic connectors use spring-loaded pogo contacts. Magnets guide the mate; the touching pins and pads carry power, data or other signals.

Electrical reliability therefore depends on the contact design as well as the magnetic system.

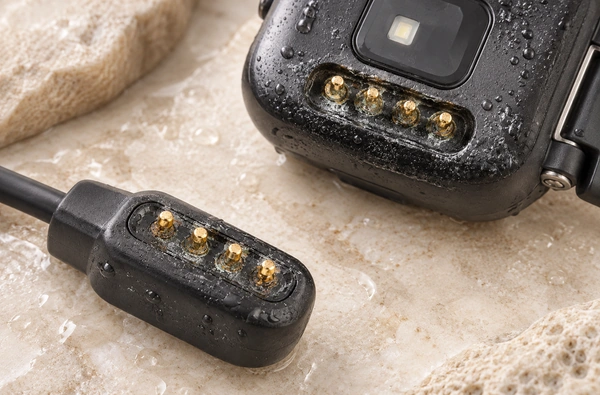

Dust, oil, sweat, moisture, oxidation and other contamination may build up at exposed contacts. Deposits or corrosion can raise resistance or produce intermittent contact over time, depending on the materials and exposure.

View image

Repeated mating can change the mechanical and electrical behavior of spring contacts.

Review these seven contact-design inputs:

• Contact material

• Surface finish and plating

• Spring force

• Working stroke

• Contact geometry

• Required mating cycles

• Environmental exposure

A wearable may meet sweat and skin contact. Industrial equipment may instead meet dust, oil or cleaning chemicals. Define those exposures separately when selecting contacts and protective measures.

Improving Contact Reliability

A suitable plating stack, controlled contact force, appropriate pogo-pin structure and protection from contamination can improve reliability. Verify the combination for the intended service rather than assuming one feature prevents all contact problems.

For an OEM design, assess the actual operating combination:

Voltage, current, contact resistance, mating cycles and environmental conditions must be considered together.

Contact count alone is insufficient for selection.

Sealing Complexity

Water protection needs to be addressed as part of magnetic-interface design.

An exposed interface may have openings around its pogo pins. Water, sweat, dust, salt spray and cleaning agents can call for additional protective measures. Their different exposures must be evaluated; a water-ingress rating does not establish resistance to every chemical or sweat condition.

View image

A sealed magnetic assembly may use the following measures:

• Sealing rings

• Adhesive seals

• Protective housing geometry

• Protected contact areas

• Controlled mating surfaces

• Defined assembly tolerances

The seal must protect the contact region while allowing magnetic positioning and the required pogo-pin movement.

The presence of a sealing ring alone does not demonstrate water protection.

Performance depends on the full structure, assembly process, housing interface and contact protection working together.

Defining Environmental Protection

Start by defining the protection required for the intended environment, then evaluate the assembled magnetic interface against it.

Include these eight exposure and use inputs:

• Required IP rating and test conditions

  IP rating

• Water exposure

• Dust exposure

• Sweat exposure

• Salt-spray exposure

• Cleaning chemicals

• Operating temperature

• Mating frequency

For wearable, smart, outdoor and industrial devices, combine environmental requirements with the electrical and mechanical design. Protection requirements apply to the intended assembly and use conditions.

Customization Cost and Coordination

A magnetic pogo assembly may contain more parts than a simple electrical connector, depending on its construction.

Its possible components include:

• Permanent magnets

• Pogo contacts

• Housing

• Contact terminals

• Cable

• Sealing components

• Custom mechanical parts

Component count and construction affect total cost alongside contact count.

Custom engineering and tooling may also influence development cost and lead time. Confirm those requirements for the proposed design rather than assuming a fixed schedule or fee.

A custom project may need changes to these ten features:

• Contact count

• Contact spacing

• Housing size

• Magnet arrangement

• Cable length

• Cable exit direction

• 90° cable head

• 180° cable head

• Sealing structure

• Required current rating

An existing standard design may be easier to source. A custom magnetic assembly can require closer engineering coordination to agree the interfaces and manufacturing details.

When Custom Design Is Useful

Consider customization when an available design cannot meet the product's mechanical or electrical requirements.

A compact wearable might need a small two-contact mate. A robotic design might need a higher-current path with separate power and signal contacts. These are different design requirements, not ratings established by the application name.

Balance these six requirements:

Size, current, contact configuration, magnetic force, environmental protection and manufacturing requirements.

Initial component price is only one part of that decision.

Magnetic Fields and Interchangeability

Assess the field generated by the connector magnets within the device.

Permanent magnets can be integrated into electronic products, but compatibility depends on the nearby components and layout. Give particular attention to magnetically sensitive devices rather than assuming that a small magnet is harmless in every design.

Examples of sensitive components include:

• Magnetometers

• Electronic compasses

• Hall-effect sensors

• Magnetic position sensors

• Other magnetically sensitive components

Evaluate magnet strength, separation distance, orientation, shielding and the sensitivity of nearby components. Their combined behavior determines the effect in the device.

Place the connector with those field interactions in mind during mechanical design.

Confirming Interchangeability

Equal contact count does not establish compatibility between two magnetic mates.

For example, two five-contact designs can differ in:

• Contact layout

• Contact pitch

• Housing dimensions

• Magnet location

• Magnet polarity

• Mating-contact arrangement

• Electrical specifications

The selection rule is:

Matching the number of contacts is only one part of compatibility assessment.

Before selecting a replacement or second source, confirm both mechanical dimensions and electrical requirements.

Keying and magnetic polarity can help prevent incorrect mating where they are designed into the assembly. Verify their behavior for the actual mate.

Matching the Application

These limitations identify what needs evaluation for a demanding product. A magnetic interface can still be considered where the device's mechanical, electrical and environmental requirements can be met and verified.

A magnetic interface may be useful for these nine requirements:

• Quick physical attachment and removal

• Blind mating with suitable guidance

• Magnetic alignment

• Compact conductive contacts

• Detachable cables

• Custom contact assignments

• Frequent mating

• Convenient charging access

• Power and signals through one interface

Potential applications include wearables, smart glasses, hearing devices, smart mugs, portable electronics, industrial handheld equipment, robotics and other compact electronics. Each application still needs its own qualification.

Give additional attention to these seven demanding requirements:

• High mechanical retention

• Continuous severe vibration

• Substantial environmental exposure

• Very high current

• Strict limits on magnetic fields

• Standardized interoperability

• Mechanical locking

Design Measures for the Limitations

Suitable component and structural choices can address several of these concerns. The following approaches require design and validation for the particular application.

Scroll horizontally to view every column.

A design may use larger power contacts and smaller signal contacts to suit different circuit loads. Contact sizing, resistance and thermal behavior must support the target device's requirements; mixed sizes alone do not establish a high-current rating.

Comparison with Conventional Connectors

Compare magnetic and conventional interfaces using the product's mechanical, electrical, environmental and user-interface requirements.

Scroll horizontally to view every column.

There is no single performance ranking that covers every magnetic and conventional connector.

Use the following product question to guide the comparison:

Which mechanical, electrical, environmental and user-interface requirements must this product meet?

Assessing System Reliability

Reliable mechanical and electrical performance is possible when the complete connector is specified and validated for its application.

Review these nine reliability inputs:

• Magnetic holding force

• Pogo-contact design

• Contact plating

• Mating-cycle requirement

• Environmental conditions

• Sealing structure

• Mechanical alignment

• Required current and voltage

• Manufacturing tolerances

Assess the interface as a complete connector system. Its contacts, magnets, structure and installation interact during use.

Before finalizing an OEM design, provide contact count, current, voltage, dimensions, required cycles, IP requirements, cable direction and operating environment. These eight inputs give the manufacturer a basis for reviewing the proposed assembly.

Engineering Questions

What makes a magnetic connection reliable?

Reliability is possible when magnetic force, pogo structure, plating, environmental protection and mating requirements are matched to the application and validated together.

Which limitations need the most attention?

Consider retention relative to a locking connector, contamination and wear, sealing complexity, possible customization cost, magnetic fields and compatibility between designs. Their importance depends on the product requirements.

How does repeated mating affect durability?

Magnetic materials and spring contacts have different durability mechanisms. Repeated mating can change contact surfaces and spring behavior, so specify and verify the required cycles for the actual assembly.

Does magnetic mating establish waterproofing?

No. Some assemblies are designed for water protection, while others are exposed. Confirm the required IP rating using the complete sealing structure, installation and defined operating or test conditions.

Can a magnetic assembly support higher current?

It can, if contact size, resistance, thermal performance, conductor size and structure are engineered and validated for the required current. The magnetic mechanism itself does not set electrical capacity.

Are magnetic mates standardized?

Standardization and interchangeability vary. Contact count, dimensions, polarity, magnet arrangement, contact layout and electrical specifications can differ, so check the particular designs before combining them.

Selection Summary

Magnetic alignment, convenient mating, detachable connections and flexible pogo arrangements can be useful. Evaluate the limitations alongside these four benefits before integrating the interface.

The six review areas are retention, conductive-contact reliability, sealing, cost and customization, magnetic fields and application compatibility.

For OEM development, judge those areas against actual device requirements. Contact count and external size are only two of the inputs needed to select an assembly.

A magnetic pogo interface can be developed around electrical, mechanical, environmental and dimensional requirements. With suitable verification, the architecture may serve compact wearables, industrial equipment or robotic devices according to each application's needs.
