Choosing and Customizing a Magnetic Connector: Eight Design Steps

• Why Consider a Magnetic Interface?
• 1. Specify the Electrical Load
• 2. Allocate the Contact Paths
• 3. Define the Mechanical Limits
• 4. Specify Environmental Exposure
• 5. Choose the Contact Material System
• 6. Decide What Needs Customization
• 7. Validate Reliability
• 8. Review the Supplier

Pin count is only one part of choosing a magnetic interface. Define the electrical load and signal requirements together with the mechanical arrangement, exposure, production method and reliability target. These eight steps help engineering and procurement teams turn application requirements into a standard or custom connector specification.

Why Consider a Magnetic Interface?

View image

A suitable magnetic design can offer these practical advantages:

1. A quick, intuitive attachment process.

2. Magnetic guidance during mating.

3. Reduced insertion-related wear during repeated connections.

4. Compact geometry where the device has limited space.

5. Straightforward everyday handling.

6. Power charging and supported data transmission when the circuit design provides them.

7. A face-contact arrangement that can support a sealed product design, with suitable sealing and validation.

These features can be useful when a product is connected frequently, provided the selected assembly meets its actual electrical and mechanical requirements.

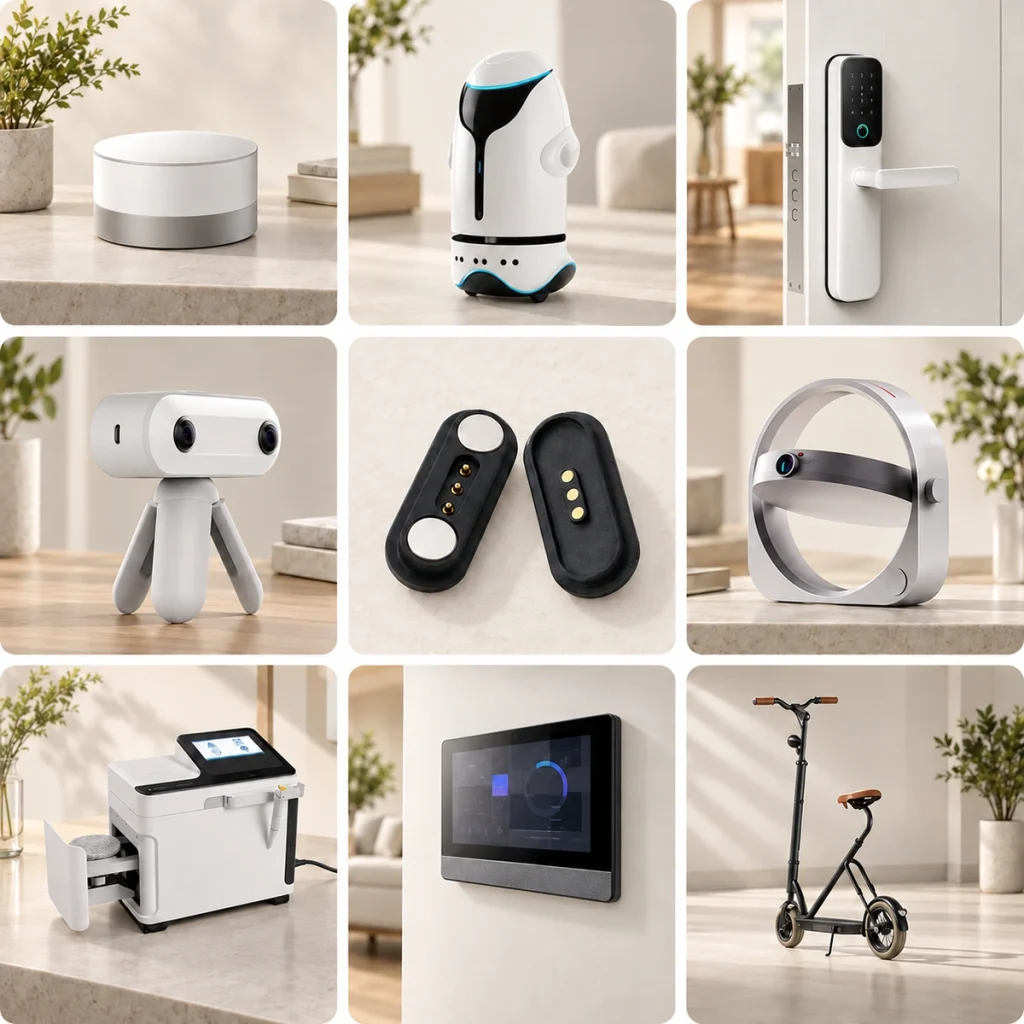

Application examples include:

• AI smart glasses.

• Smartwatches.

• Other wearable electronics.

• Medical devices.

• Shared power banks.

• Smart-home devices.

• Industrial equipment.

• Robotic systems.

• Portable consumer electronics.

1. Specify the Electrical Load

Start selection with the required electrical performance of the complete interface.

Current Capacity

Specify the maximum operating current, including any peak or inrush conditions.

The following application ranges are illustrative selection examples, not universal ratings:

Scroll horizontally to view every column.

An undersized current path can overheat, develop excessive voltage drop or shorten the assembly’s service life. Validate the chosen model at the required load.

Operating Voltage

Check the specified voltage rating and the insulation arrangement for the actual operating conditions.

Signal and Data Requirements

If the interface carries data as well as power, identify the communication requirements:

• USB communication, with the supported version and system implementation defined.

• UART.

• I²C.

• SPI.

• Any higher-speed signal requirements.

Increasing data rates makes the contact layout, cable design and signal-integrity validation more demanding.

2. Allocate the Contact Paths

The number of contacts limits the paths available, while their assignment determines the implemented functions.

Example Contact Arrangements

Two contacts

• A positive supply and return for charging.

• Applications seeking a simple, lower-cost interface.

• Wearables and trackers with a suitable two-path power design.

Four contacts

• Power and a compatible communication arrangement.

• Shared power-bank interfaces.

• Smart devices with the required circuit mapping.

Six to eight contacts

• Charging with several signal paths.

• Medical-equipment interfaces with an appropriate validated design.

• Smart-electronic interfaces requiring additional contacts.

Ten or more contacts

• More complex communication arrangements.

• Industrial equipment with multiple electrical paths.

• Robotics requiring a suitable power and signal allocation.

Extra contacts can increase connector size and cost. Allocate the paths actually needed instead of selecting a larger count by default.

3. Define the Mechanical Limits

Available Connector Space

The device’s available space often sets the permitted connector dimensions.

Review the following integration constraints:

• Overall product thickness.

• Internal PCB position and layout.

• Enclosure construction.

• How users hold and connect the equipment.

Compact interfaces may be useful in:

• Smart glasses.

• Earbuds.

• Smartwatches.

• Other portable electronics.

Magnetic Holding and Release Force

Choose magnetic retention for both the operating loads and the intended user action.

Insufficient holding force can cause:

• Unintended disconnection during normal use.

Excessive holding force can cause:

• Difficult attachment or removal for the user.

Balance secure retention against accessible operation, and test both in the assembled device.

Target Mating Life

Examples of mating-life targets for suitable designs include:

• 10,000 cycles.

• 20,000 cycles.

• 50,000 cycles or more, where supported by the model’s test evidence.

A device charged daily needs a life target consistent with its intended service period and actual mating conditions.

4. Specify Environmental Exposure

Exposure conditions affect the contacts, magnets, housing and sealing requirements.

Water and Dust Protection

Depending on the real outdoor or medical application, the specification might require:

• IP65.

• IP66.

• IP67.

Sealing can reduce water entry but can also increase complexity and cost. Choose the required tested protection level and define the assembly state; do not request the highest rating without an application need.

Corrosion Exposure

Sweat, moisture and chemicals need an appropriate material, coating and sealing review. More severe exposure may require a multilayer coating system validated for the actual contaminants.

Possible protective measures include:

• Suitable gold-plated mating surfaces.

• Materials selected for the required corrosion resistance.

• Sealed connector structures where required.

Operating Temperature

Specify the temperature range and cycling expected in industrial or automotive service, including any extreme conditions relevant to the device.

5. Choose the Contact Material System

The contact material and coating system influence electrical and mechanical reliability.

Materials to evaluate include the following:

Brass

Reasons to consider brass:

• A cost-conscious material option.

• Useful electrical conductivity for suitable contact designs.

Example application category:

• Consumer-electronic contacts.

Phosphor Bronze

Reasons to consider phosphor bronze:

• Elastic properties useful in spring-contact structures.

• Durability where the alloy and design suit the required cycling.

Example application category:

• Products with a high mating-cycle target.

Beryllium Copper

Reasons to consider beryllium copper:

• A useful conductivity and strength balance for appropriate contact designs.

• Spring performance when the alloy and treatment are properly specified.

Example application category:

• Devices with demanding contact-reliability requirements.

A suitable gold-plating system can help address:

• Stable, low contact resistance.

• Resistance to the specified corrosion exposure.

• Contact performance over the required service life.

6. Decide What Needs Customization

Check standard designs first. Customization can improve fit or performance when existing parts do not meet the requirements, but the proposed changes still need manufacturing and validation review.

Housing Customization

Possible housing changes include:

• External shape.

• Dimensions.

• Mounting arrangement.

• Appearance.

Contact Layout Customization

Allocate the contact pattern around these requirements:

• PCB layout.

• Power distribution.

• Implemented data interfaces.

Magnetic Arrangement Customization

Magnetic-design options may include:

• Magnet dimensions.

• Magnet placement.

• Holding and release force.

• Polarization and orientation control.

Cable Assembly Customization

Cable-end options to specify include:

• USB-A.

• USB-C, with the actual power and data capabilities defined.

• A DC cable.

• A custom harness.

7. Validate Reliability

Validate representative connector assemblies before committing to mass production, using conditions that reflect the actual equipment.

The test plan may include these groups of checks:

Electrical Validation

• Contact resistance.

• Insulation resistance.

• Current-carrying performance at the defined load.

Mechanical Validation

• Mating-cycle testing.

• Retention-force measurements.

• Vibration testing.

Environmental Validation

• Salt-spray exposure where relevant.

• Temperature cycling.

• Humidity exposure.

• Water-protection testing in the specified assembly state.

Application-representative testing helps reveal weaknesses before a larger production deployment.

8. Review the Supplier

Supplier capability affects whether the chosen connector can be developed, produced and supported consistently.

Include these areas in the supplier review:

Engineering Support

Ask what support is available for:

• Design discussions.

• Design-for-manufacture analysis.

• Prototype development.

• Application-specific technical recommendations.

Manufacturing Capability

Verify the relevant production arrangements:

• Capacity for the required quantity.

• Quality-control processes.

• Appropriate automation.

• Part and process traceability.

Applicable Documentation

Request current evidence for the relevant product or organization scope, such as:

• RoHS material compliance.
• ISO 9001 quality-management certification.
• ISO 14001 environmental-management certification.

• IECQ QC 080000 hazardous-substance process-management certification.

Conclusion

A suitable magnetic interface balances electrical performance, mechanical fit, environmental durability, production requirements and cost. Clearly document the application, review candidate designs with the supplier and validate the final assembly. This process supports the intended user experience and reliability without assuming that a pin count or catalog description proves performance.

The same approach applies to a compact two-pin wearable charging interface and a custom high-current industrial connection. Early design evaluation and supplier collaboration help identify the right structure and the validation work needed before production.
